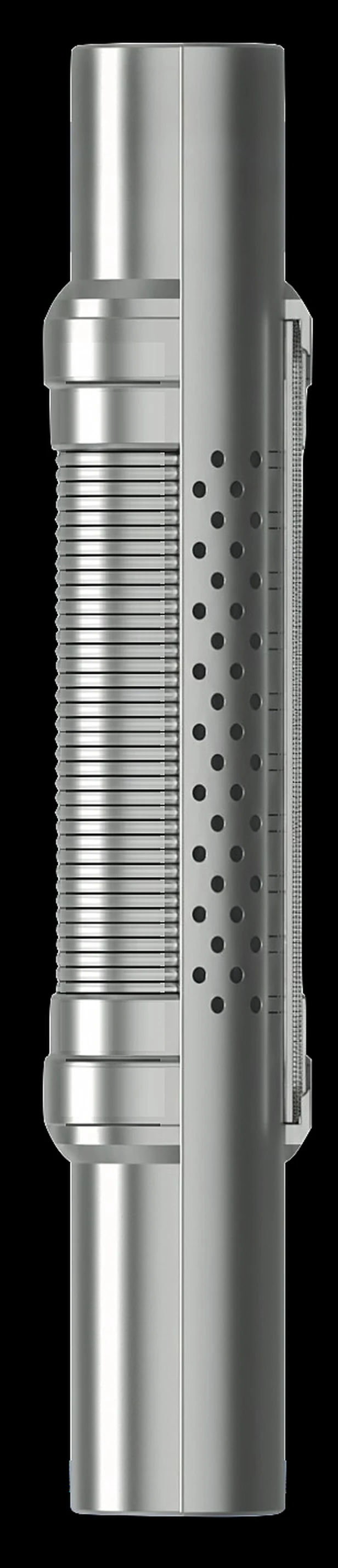

Sand Control Well Screen

Sand Control Well Screen

Wire-wrapped sand control screens for hydrocarbon production, water injection, and steam injection (SAGD) wells. Available in direct-wrap, pipe-based (perforated API base pipe), and pre-packed gravel configurations matched to formation grain size and completion design. Collapse rating calculated per project for well depth and formation pressure. API threads (BTC, NUE, EUE) via licensed threading partners; premium connections on request; flanged or plain ends.

ISO 9001Serving 30+ CountriesEN 10204 Type 3.1Robotic Precision Manufacturing

APPLICATIONS

• Vertical oil & gas production wells

• Horizontal completions

• Water injection wells

• Steam injection (SAGD)

• Sand control in unconsolidated formations

MATERIALS

SS 304SS 304LSS 316SS 316LSS 316TiSS 321Duplex 2205Super Duplex 2507Inconel 625Inconel 825

RELATED INDUSTRIES

Oil, Gas, and Petrochemical

WIRE PROFILES

SUPPORT RODS

SPECIFICATIONS

Diameter Range2-7/8" to 13-3/8" (73–340 mm), custom available
LengthBase pipe up to 12 m; screen jacket up to 6.5 m per section (subject to production confirmation)
Slot ApertureFrom 0.15 mm (0.006"); finer on request
Wire ProfileV-wire continuous slot
ConstructionDirect-wrap, pipe-based, or pre-packed gravel
Collapse StrengthProject-specific calculation on request
End ConnectionsAPI threads (BTC, NUE, EUE) via licensed threading partners; premium connections on request; flanged or plain ends
StandardsDesigned with reference to ISO 17824 / API 19SS; validation testing on project request. Materials selected per NACE MR0175 / ISO 15156.

MATERIAL SPECIFICATIONS

Indicative values. Specific service limits depend on operating chemistry, temperature, and stress state. Material certification per EN 10204 Type 3.1 supplied with order.

MaterialUNS / ENPRENChlorideMax Temp
SS 304S30400 / 1.430118–20≤ 200 ppm≤ 400 °C
SS 304LS30403 / 1.430718–20≤ 200 ppm≤ 400 °C
SS 316S31600 / 1.440124–26≤ 1000 ppm≤ 450 °C
SS 316LS31603 / 1.440424–26≤ 1000 ppm≤ 450 °C
SS 316TiS31635 / 1.457124–26≤ 1000 ppm≤ 550 °C
SS 321S32100 / 1.454117–19≤ 200 ppm≤ 600 °C

MANUFACTURING TOLERANCES

Standard manufacturing tolerances. Tighter tolerances available on request and confirmed at order entry.

Slot RangeSlot Tolerance
0.02 – 0.10 mm± 0.005 mm
0.10 – 0.50 mm± 0.01 mm
0.50 – 2.00 mm± 0.03 mm
2.00 – 10.0 mm± 0.10 mm
> 10.0 mm± 0.20 mm
Diameter± 0.5 mm (≤ 500 mm), ± 1.0 mm (> 500 mm)
Length± 2.0 mm per meter
Flatness≤ 1.5 mm/m for flat panels
Ovality≤ 0.5% of OD for cylindrical screens
