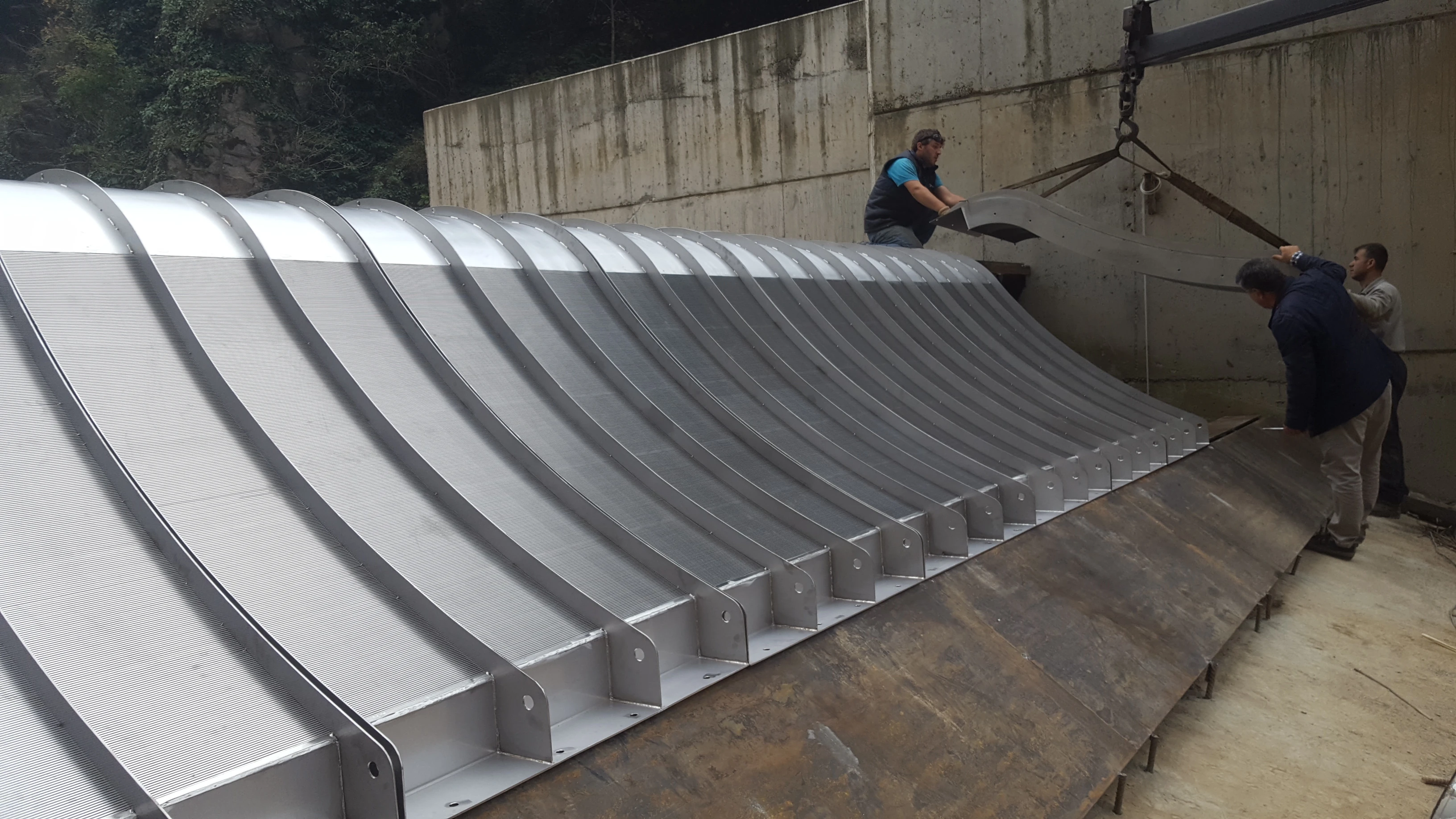

Coanda Screen
Curved wedge wire panel that exploits the Coanda effect for passive water intake. Water flows over the curved surface and adheres to the wire, passing through the slots by gravity and surface tension. Debris is rejected over the screen face. No moving parts, no power consumption, no operator intervention. Ideal for hydropower, remote water supply, irrigation, and aquaculture. Available in three standard sizes: 450mm, 700mm, and 1270mm Height. Custom dimensions available for project-specific applications.
APPLICATIONS
• Hydropower intake
• Irrigation canal intake
• Remote water supply
• Aquaculture water supply
MATERIALS
RELATED INDUSTRIES
WIRE PROFILES
SUPPORT RODS
SPECIFICATIONS
MATERIAL SPECIFICATIONS
Indicative values. Specific service limits depend on operating chemistry, temperature, and stress state. Material certification per EN 10204 Type 3.1 supplied with order.
| Material | UNS / EN | PREN | Chloride | Max Temp |
|---|---|---|---|---|
| SS 304 | S30400 / 1.4301 | 18–20 | ≤ 200 ppm | ≤ 400 °C |
| SS 316L | S31603 / 1.4404 | 24–26 | ≤ 1000 ppm | ≤ 450 °C |
| Super Duplex | S32750 / 1.4410 | ≥ 40 | Seawater compatible | ≤ 300 °C |
MANUFACTURING TOLERANCES
Standard manufacturing tolerances. Tighter tolerances available on request and confirmed at order entry.
| Slot Range | Slot Tolerance |
|---|---|
| 0.02 – 0.10 mm | ± 0.005 mm |
| 0.10 – 0.50 mm | ± 0.01 mm |
| 0.50 – 2.00 mm | ± 0.03 mm |
| 2.00 – 10.0 mm | ± 0.10 mm |
| > 10.0 mm | ± 0.20 mm |
Coanda Screens are manufactured by our sister brand Coanda Intakes (coandaintakes.com). Visit the dedicated product page for detailed specifications, sizing, and technical data.
VISIT PRODUCT PAGE FOR DETAILS →Need a Custom Screen? Send Us Your Specs.
Describe your application, operating environment, and dimensional requirements. Our engineering team will respond within one business day.
