SCREEN CONFIGURATOR

Build Your Specification.

Configure your wedge wire screen step by step. Selections update the specification summary in real time.

Unit:Metric
Imperial
01

Industry

What industry do you work in? This narrows down the recommended screen types.

Water Treatment
• Municipal water intake
• Fish protection systems
• Seawater desalination
Mining & Minerals
• Dewatering
• Classification
• Mineral processing
Food & Beverage
• Brewing
• Juice processing
• Dairy filtration
Oil & Gas
• Well screens
• Gravel pack systems
• Production separation
Pulp & Paper
• Fiber screening
• Stock preparation
• Pressure screens
Chemical Processing
• Process filtration
• Catalyst retention
• Polymer screening
Power Generation
• Cooling water intake
• Fish protection
• Coanda systems
Agriculture & Irrigation
• Open channel intake
• Pivot irrigation
• Gravity systems
Or skip this step to see all screen types.
02

Screen Type

Select the screen geometry for your filtration application

Cylinder Screen (Johnson-type)
Cylinder Screen
Modular cylindrical wedge wire screens for multi-application filtration and separation. The continuous slot screen design provides maximum open area and non-clogging performance.
Sieve Bend Screen
Sieve Bend Screen
Curved and inclined static screens for high-capacity gravity separation. Ideal for dewatering and classification in mining and food processing.

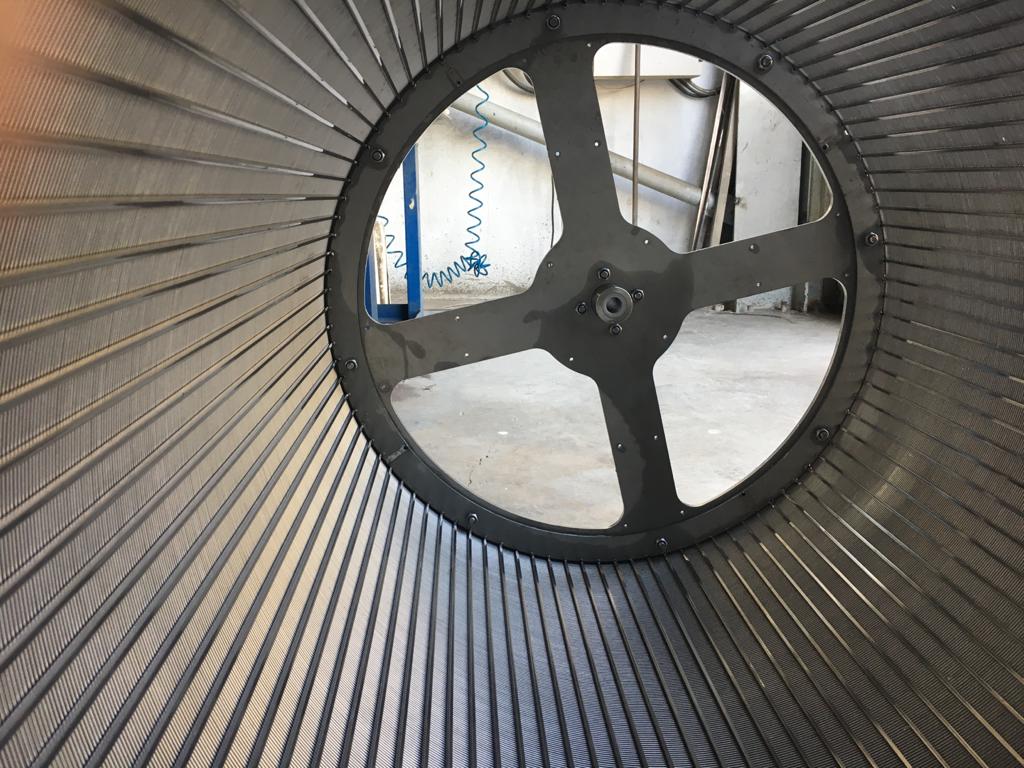

Rotary/Drum Screen
Rotary/Drum Screen
Rotating cylindrical filtration for continuous screening operations. Self-cleaning design minimizes downtime.
Flat/Panel Screen
Flat/Panel Screen
Rectangular panel screens for vibration-based separation. Robust construction for demanding environments.

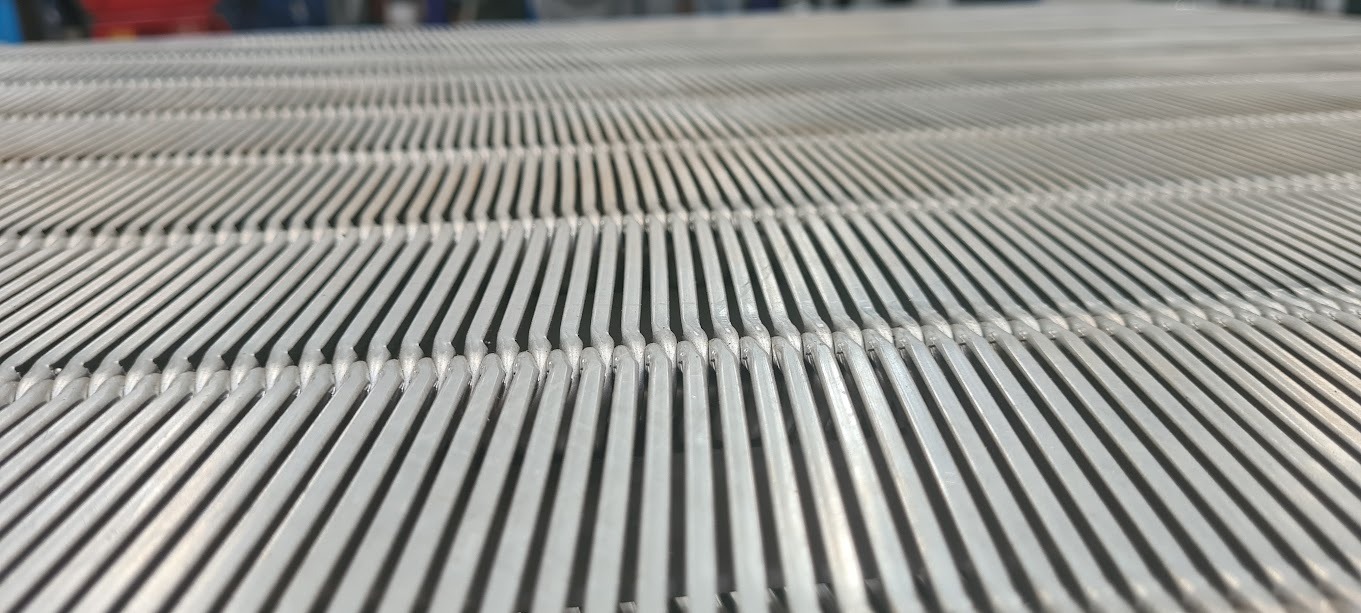

Looped Wire Screen
Looped Wire Screen
Heavy-load welded construction for severe service applications requiring maximum structural integrity.

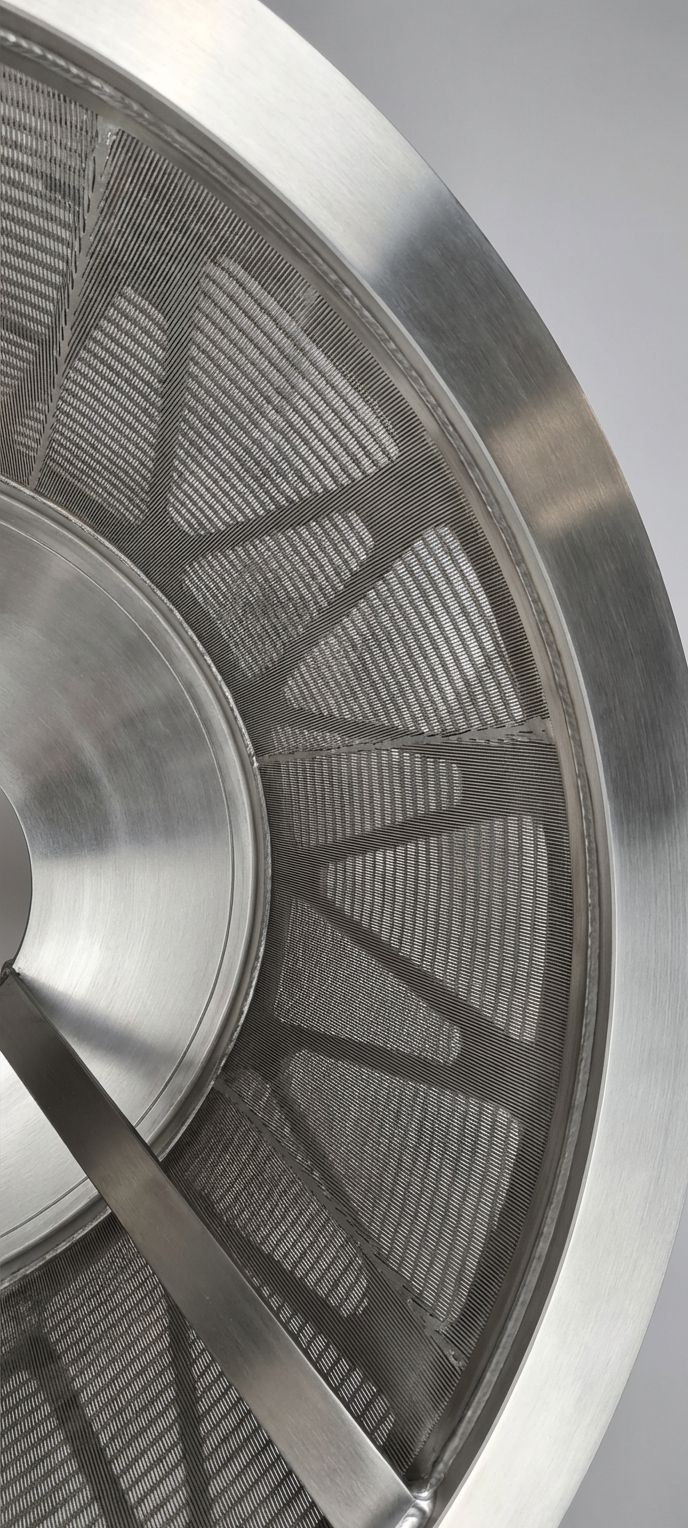

Basket/Centrifuge Screen
Basket/Centrifuge Screen
Centrifugal basket screens in conical and tubular configurations for high-speed separation processes.
Intake Screen (T-Screen)
Intake Screen
Passive submerged water intake screens for municipal, irrigation, and industrial applications. Compliant with US Clean Water Act Section 316(b). Low velocity intake protects aquatic life.

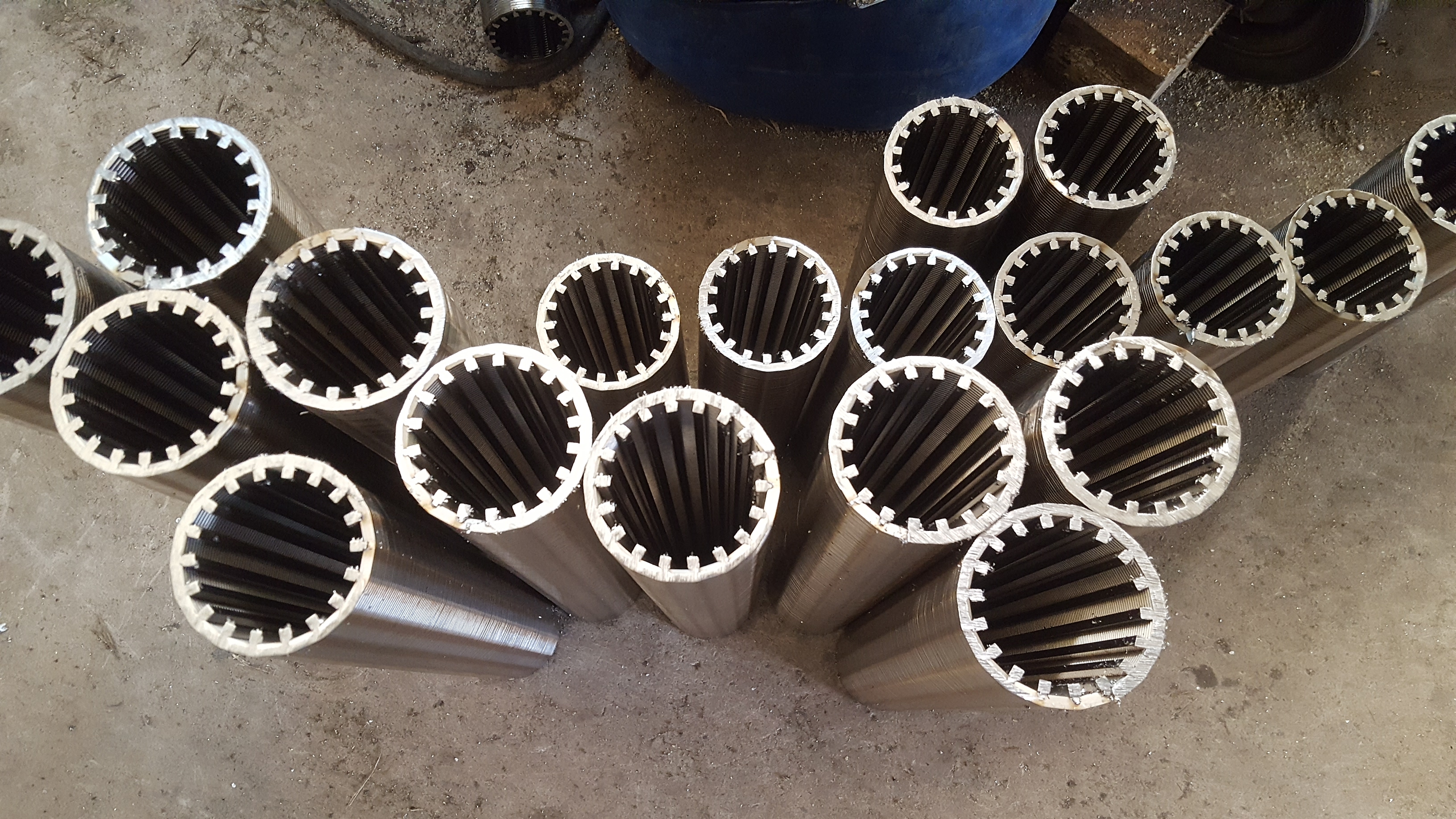

Water Well Screen (Vee Wire)
Water Well Screen
Borehole filtration screens for groundwater extraction, oil and gas wells, and dewatering applications. Continuous slot design prevents sand infiltration.

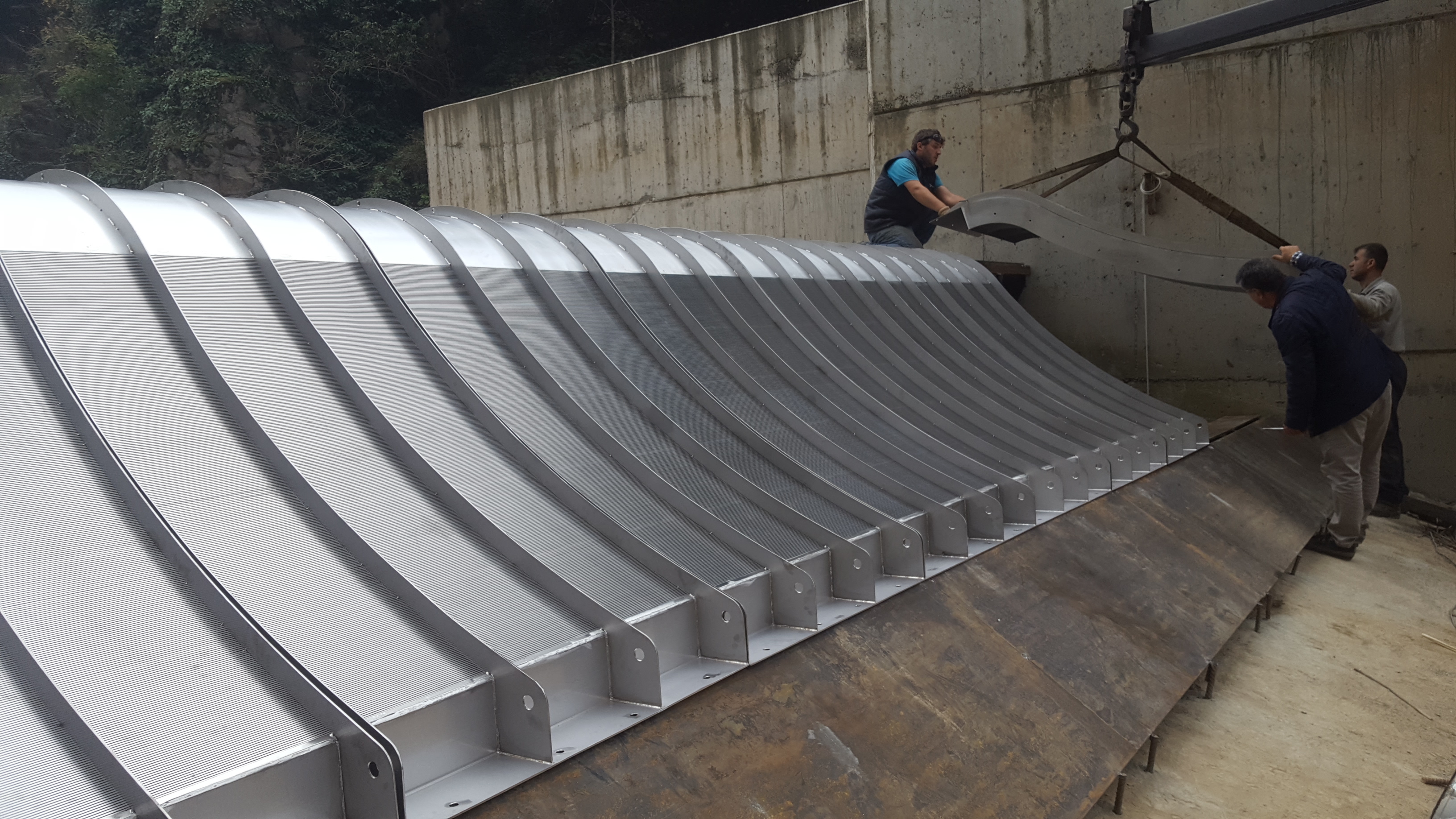

Coanda Intake Screen
Coanda Intake Screen
Self-cleaning curved wedge wire intake screen that uses the Coanda effect to draw water through slots with no moving parts, no power, and no operator intervention.

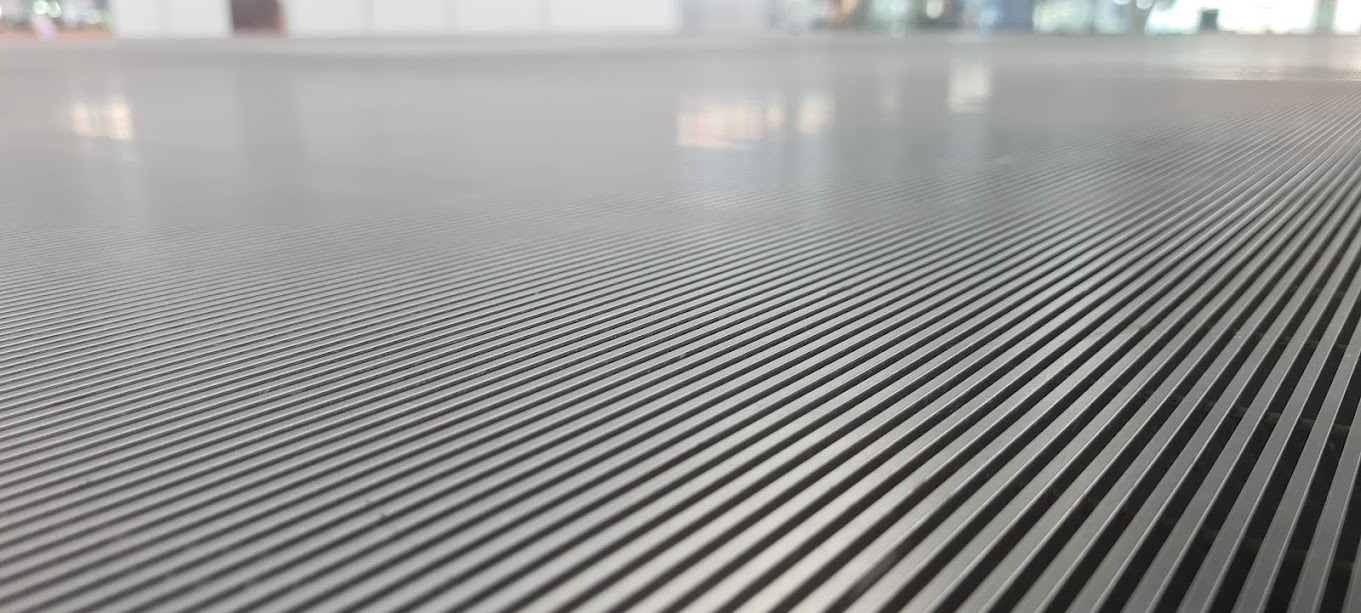

Architectural Screen
Architectural Screen
V-wire facade panels, sun screens, and decorative cladding for building exteriors and interiors. Precision slot patterns create controlled light, airflow, and visual texture.

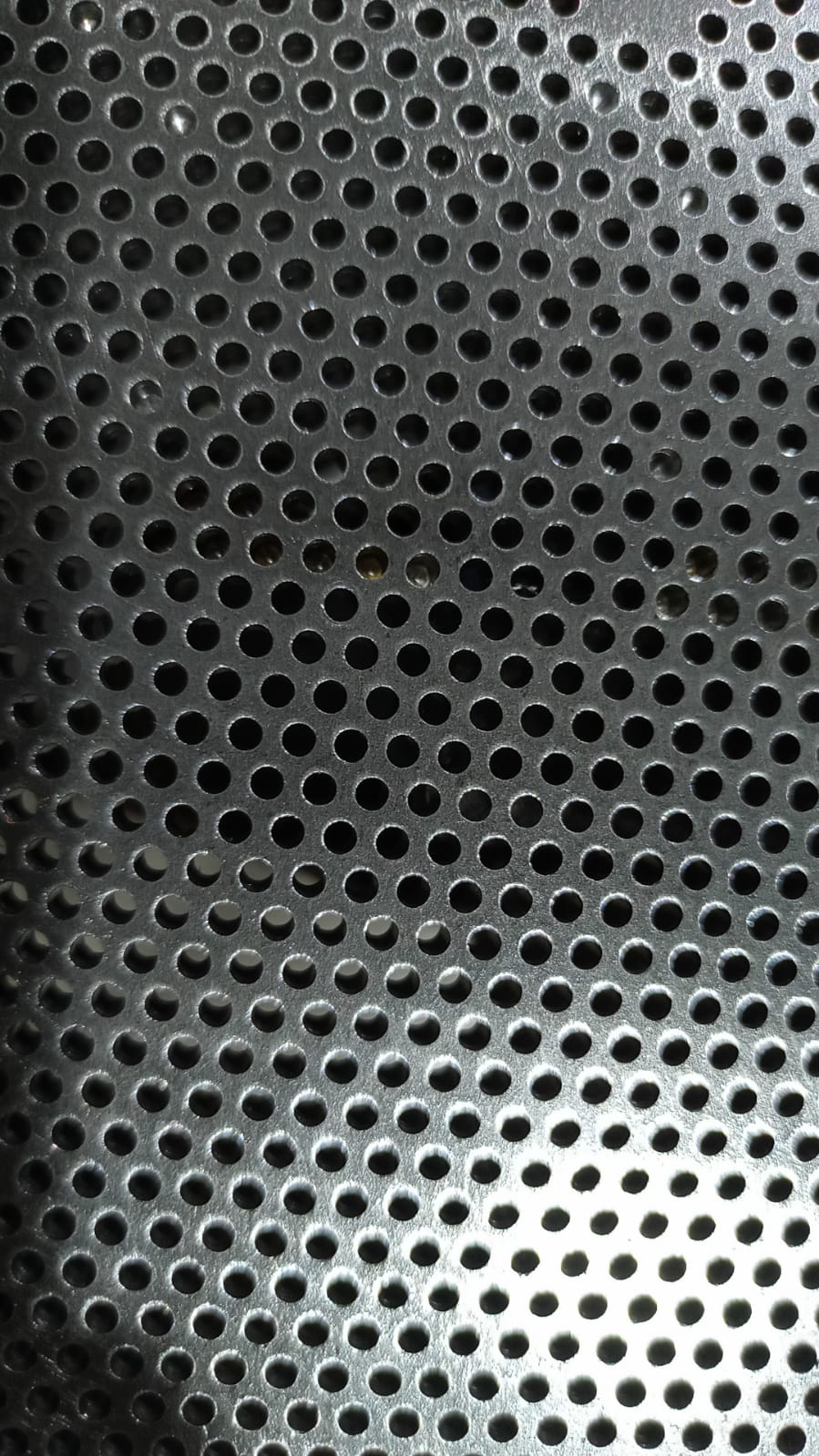

Drilled Screen
Drilled Screen
Precision-drilled perforated screens with multiple hole geometries: cylindrical, bi-cylindrical, countersunk, conical, and cylindrical-conical profiles.
03

Operating Environment

Select your operating conditions. This determines the recommended material grade.

Freshwater
Rivers, lakes, reservoirs, groundwater
→ SS 304
Brackish Water
Estuarine environments, mixed salinity
→ SS 316
Seawater / Marine
Coastal intake, desalination, offshore
→ SS 316L
Food Grade
Brewing, dairy, juice, pharmaceutical
→ SS 316L
Chemical Process
Acids, alkalis, solvents, catalysts
→ Super Duplex 2507
High Temperature
Above 400°C continuous service
→ SS 321
04

Material Grade

Select an environment first for a material recommendation, or choose directly.

SS 304
Freshwater, general purpose
EN 1.4301
SS 304L
Welded assemblies, low carbon
EN 1.4307
SS 316
Brackish water, mild chemicals
EN 1.4401
SS 316L
Seawater, food grade, pharmaceutical
EN 1.4404
SS 316Ti
High temperature service
EN 1.4571
SS 321
Elevated temperature, chemical processing
EN 1.4541
Super Duplex 2507
Aggressive marine and chemical environments
EN 1.4410
05

Slot Aperture

Select a screen type to see specific options

0.25
mm
0.50
mm
1.0
mm
2.0
mm
3.0
mm
5.0
mm
Custom:mm
06

Dimensions

Select a screen type above to configure dimensions.

Select a screen type above to configure dimensions.
07

Flow Rate

Required flow capacity for screen area calculation

CONFIGURATION SUMMARY
Industry
—
Screen Type
—
Environment
—
Material
—
Slot Aperture
—
Flow Rate
—
Quantity
1
GET A QUOTE
0 of 7 configured
0/6
RFQ
